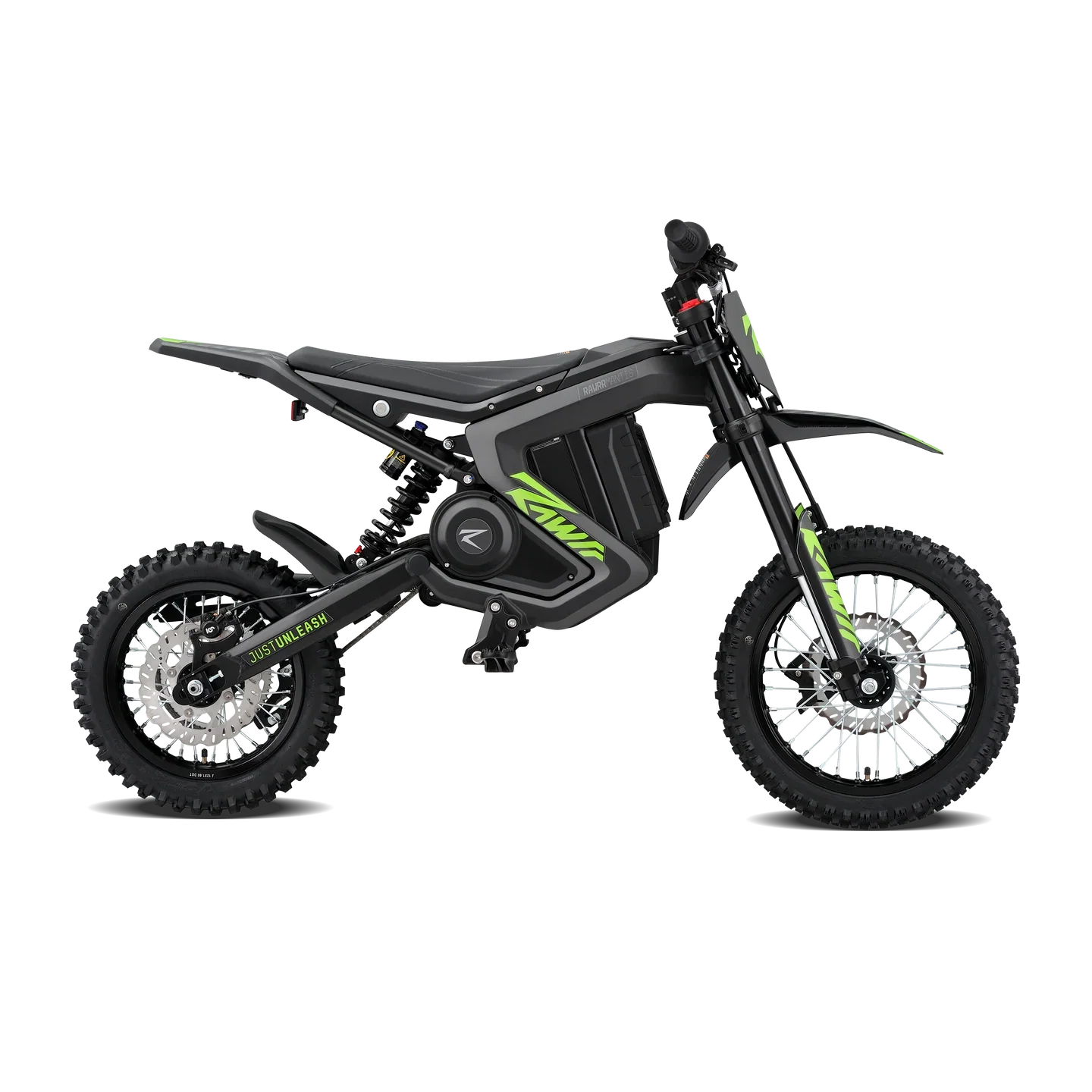

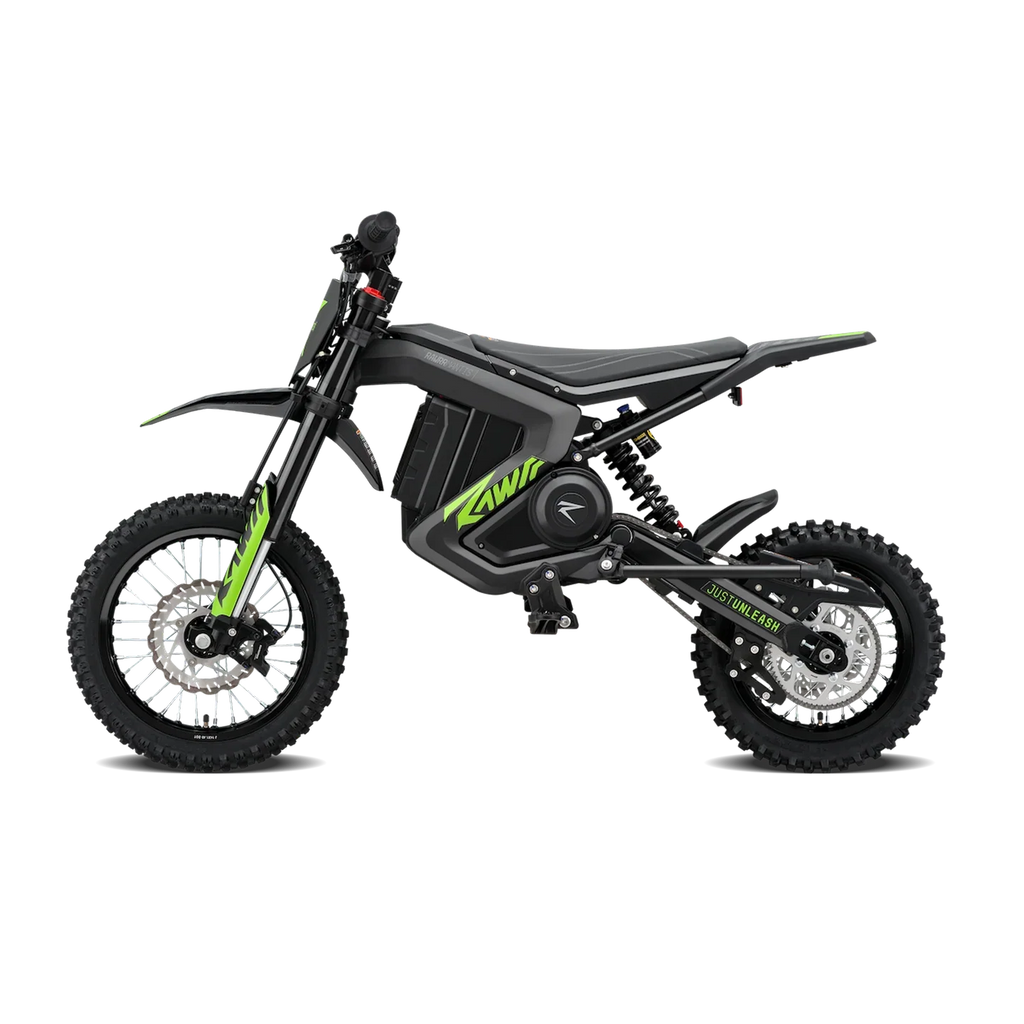

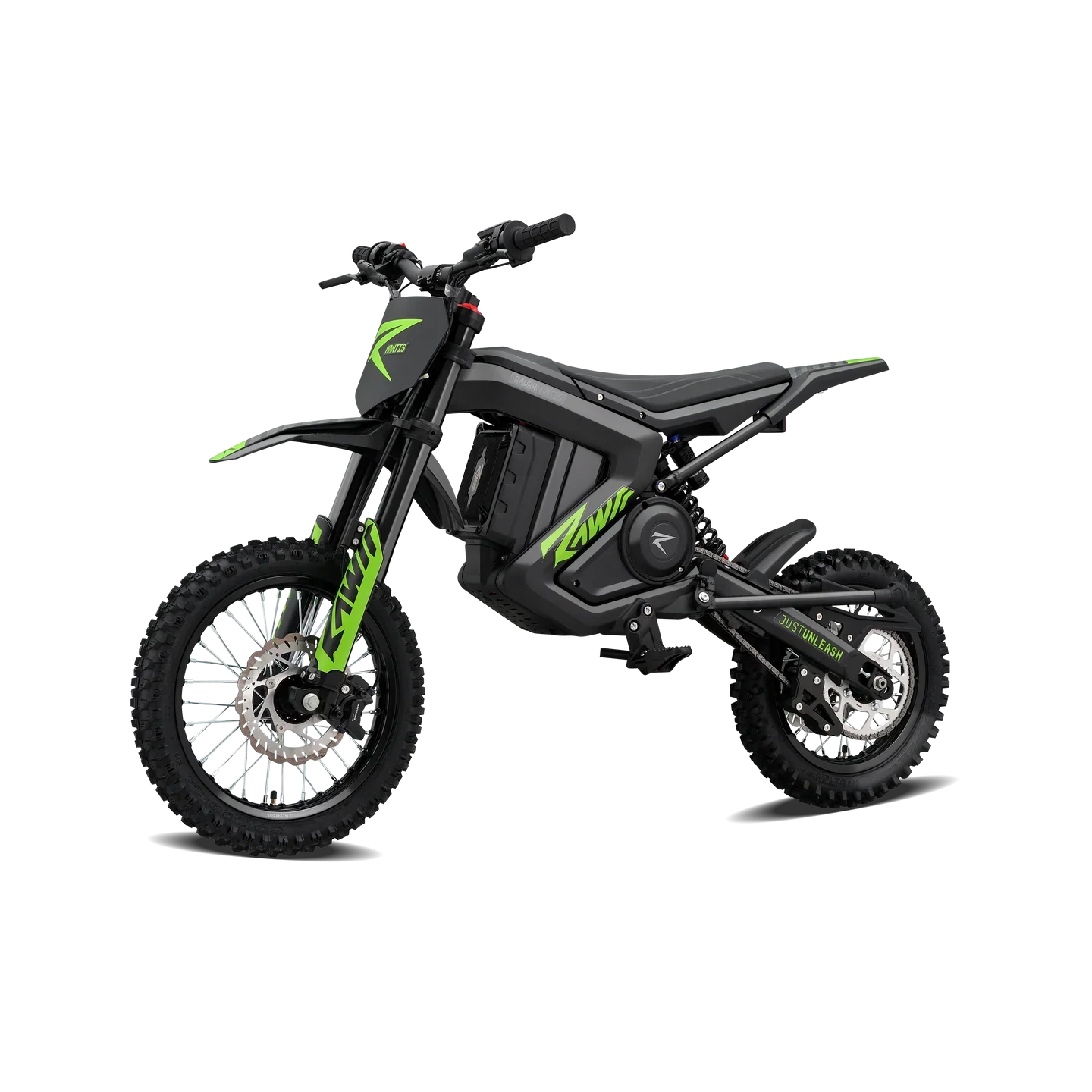

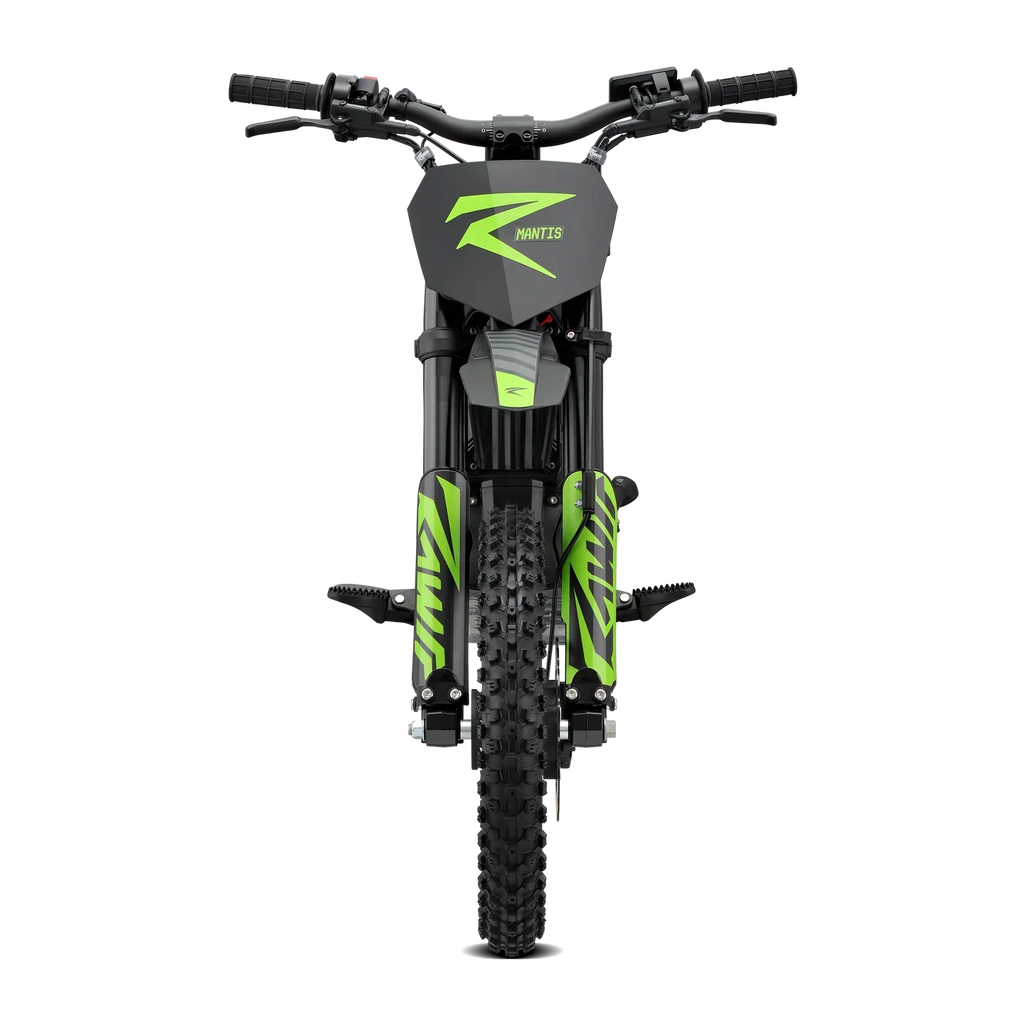

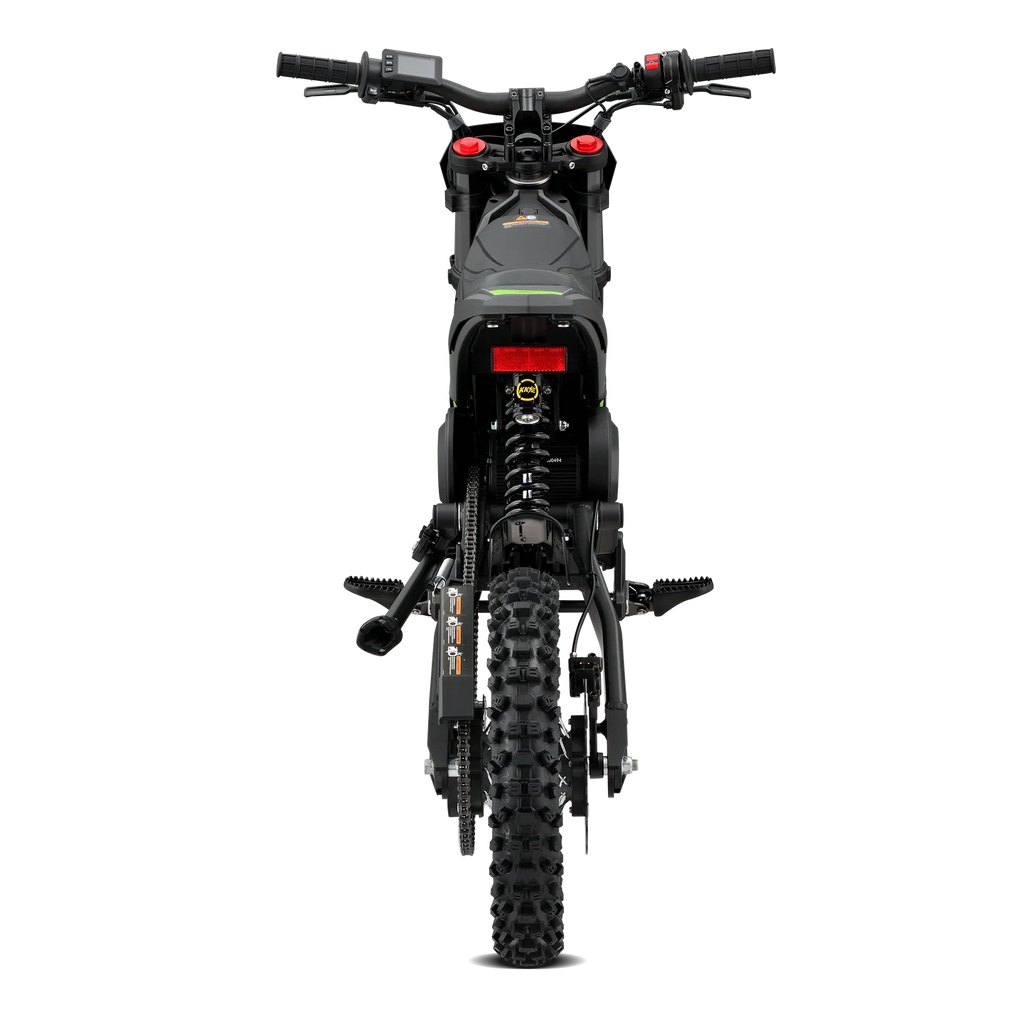

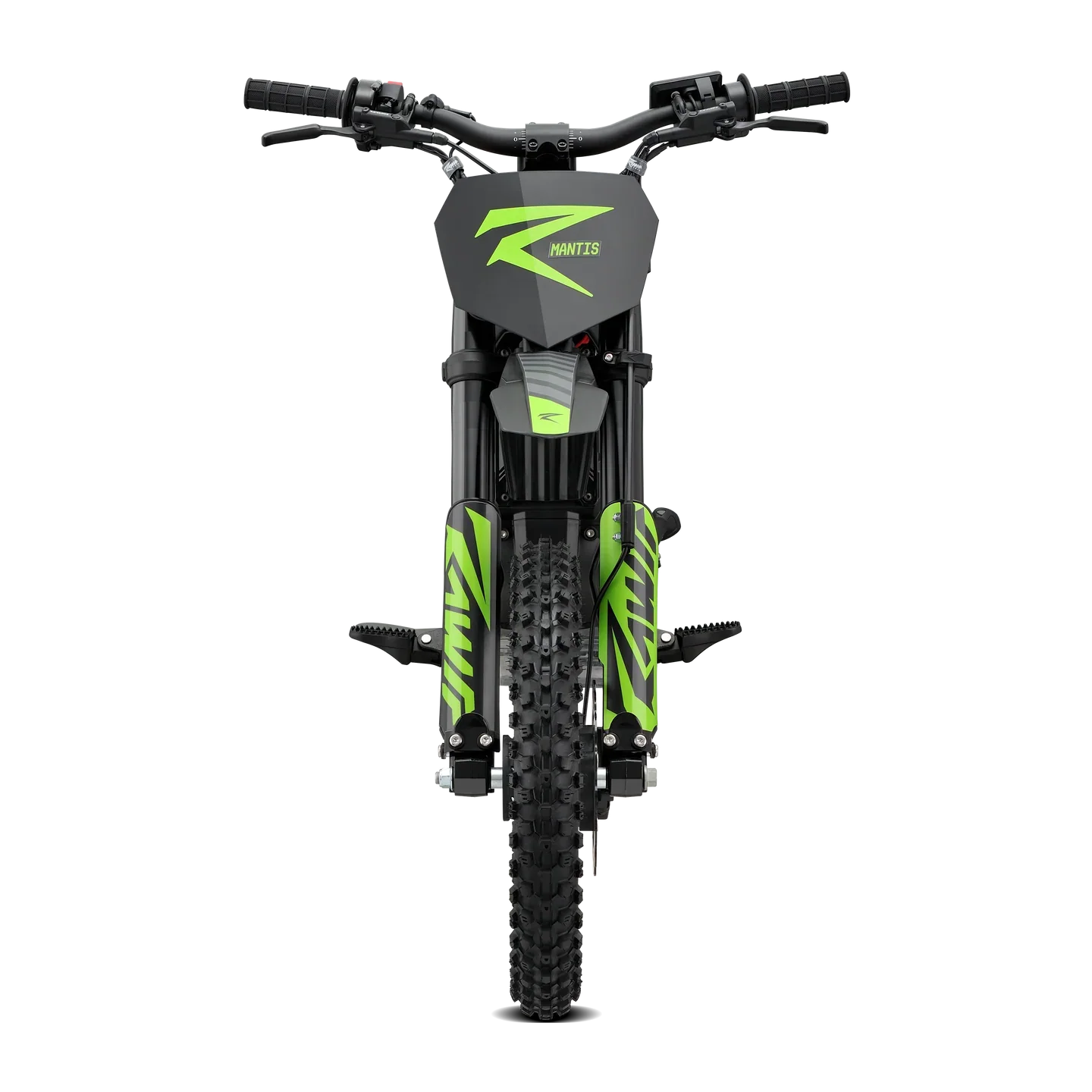

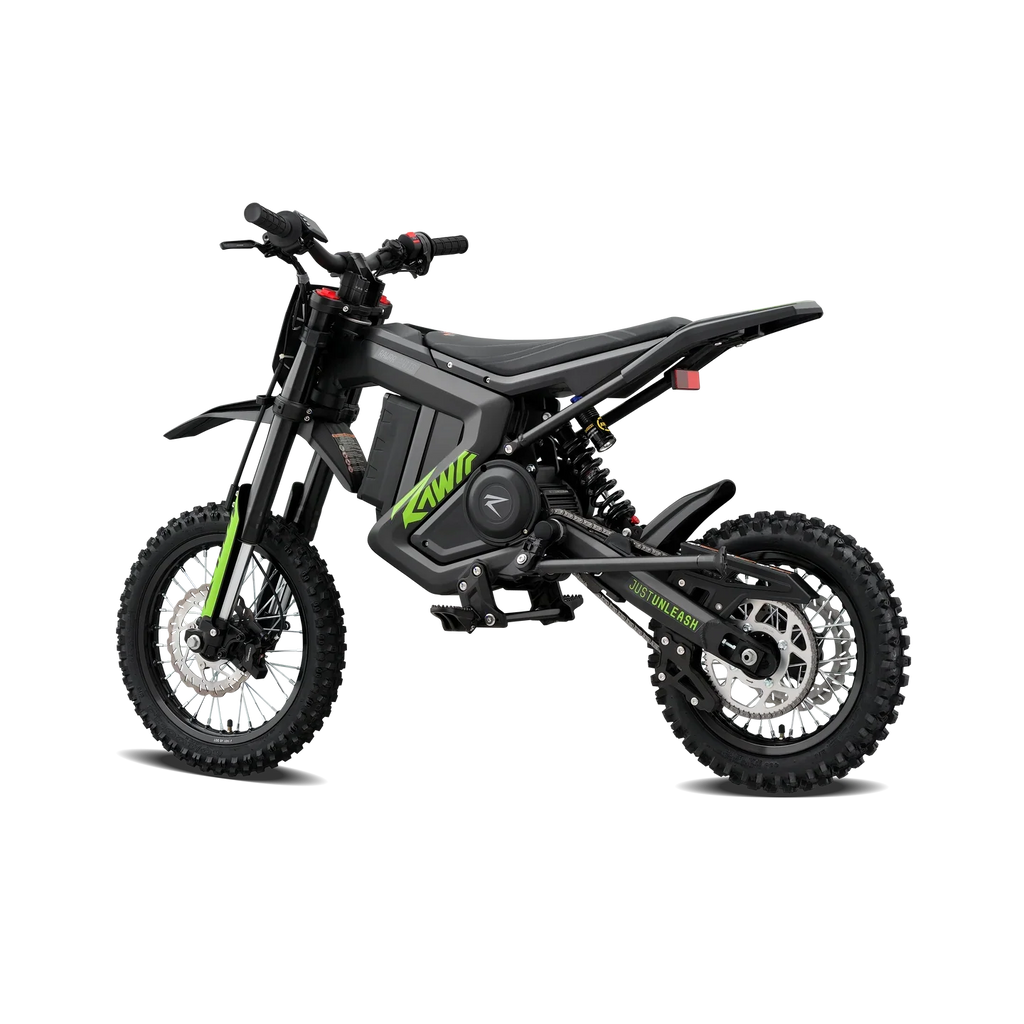

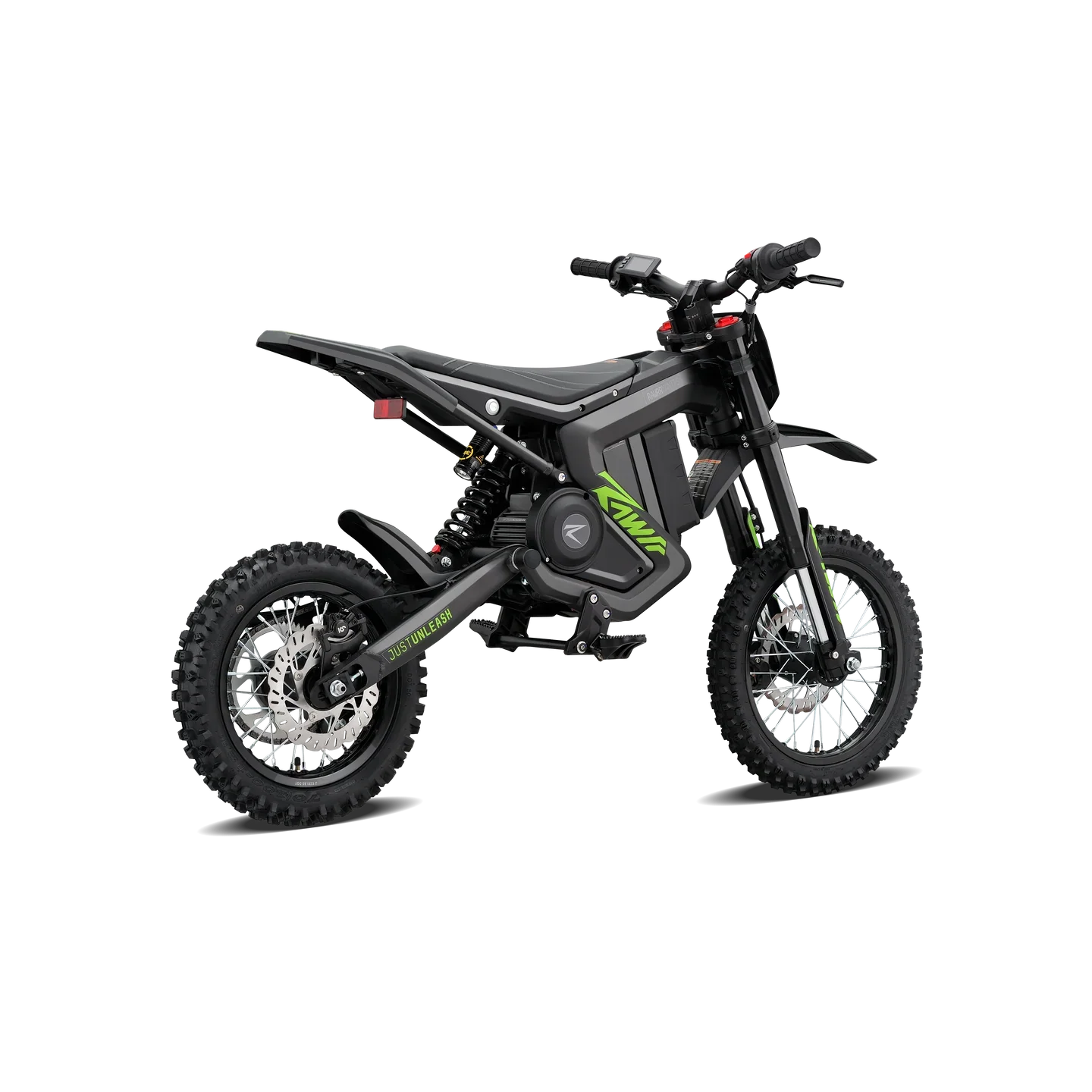

Rawrr Mini

Rawrr Mini

€2.999,00
Sale price  €2.999,00 Regular price
Bike Geometries

Dual Fit

Choose the perfect fit with the Mantis Mini R and Mantis Mini R17, designed for different rider heights and riding needs.

Powered by a 72V battery and 6000W PMSM motor, this beast launches from 0-30MPH in just 3.6s. Topping out at 46MPH. With full customization for parents or young pros through our app-enabled controller.

With aircraft-grade aluminum, hydraulic brakes on the front and rear, and adjustable suspension, the Mini R and R17 don't just go fast, they let the whole family have confidence in the rider.

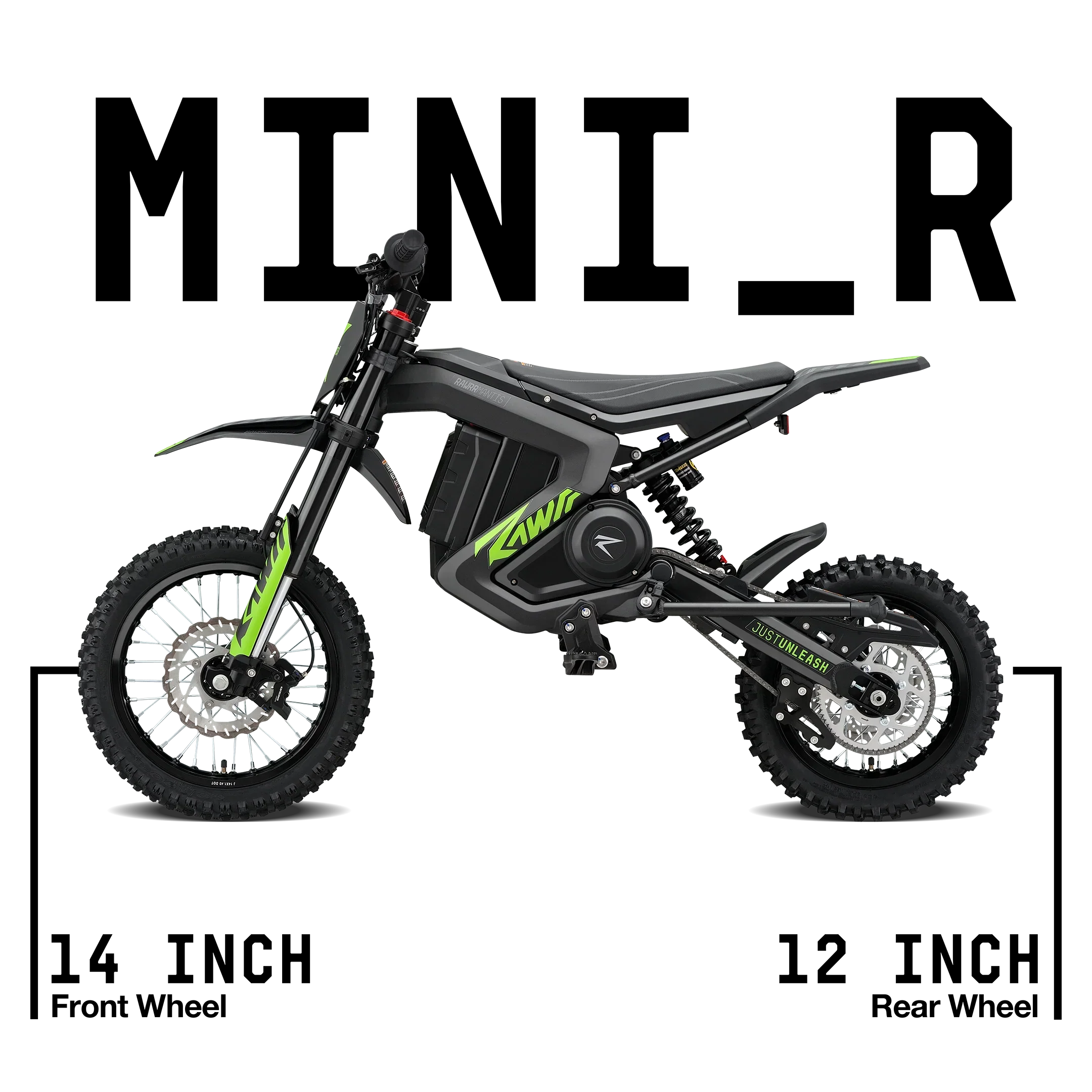

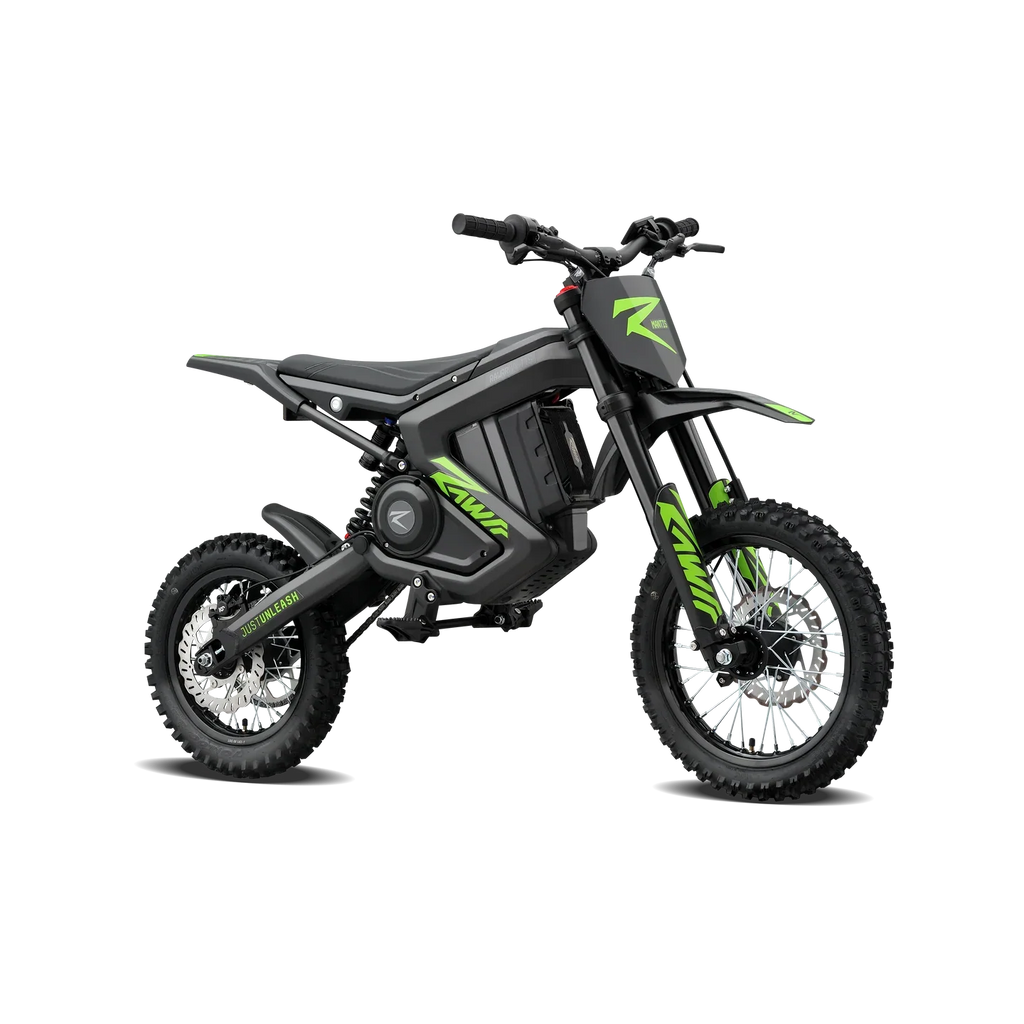

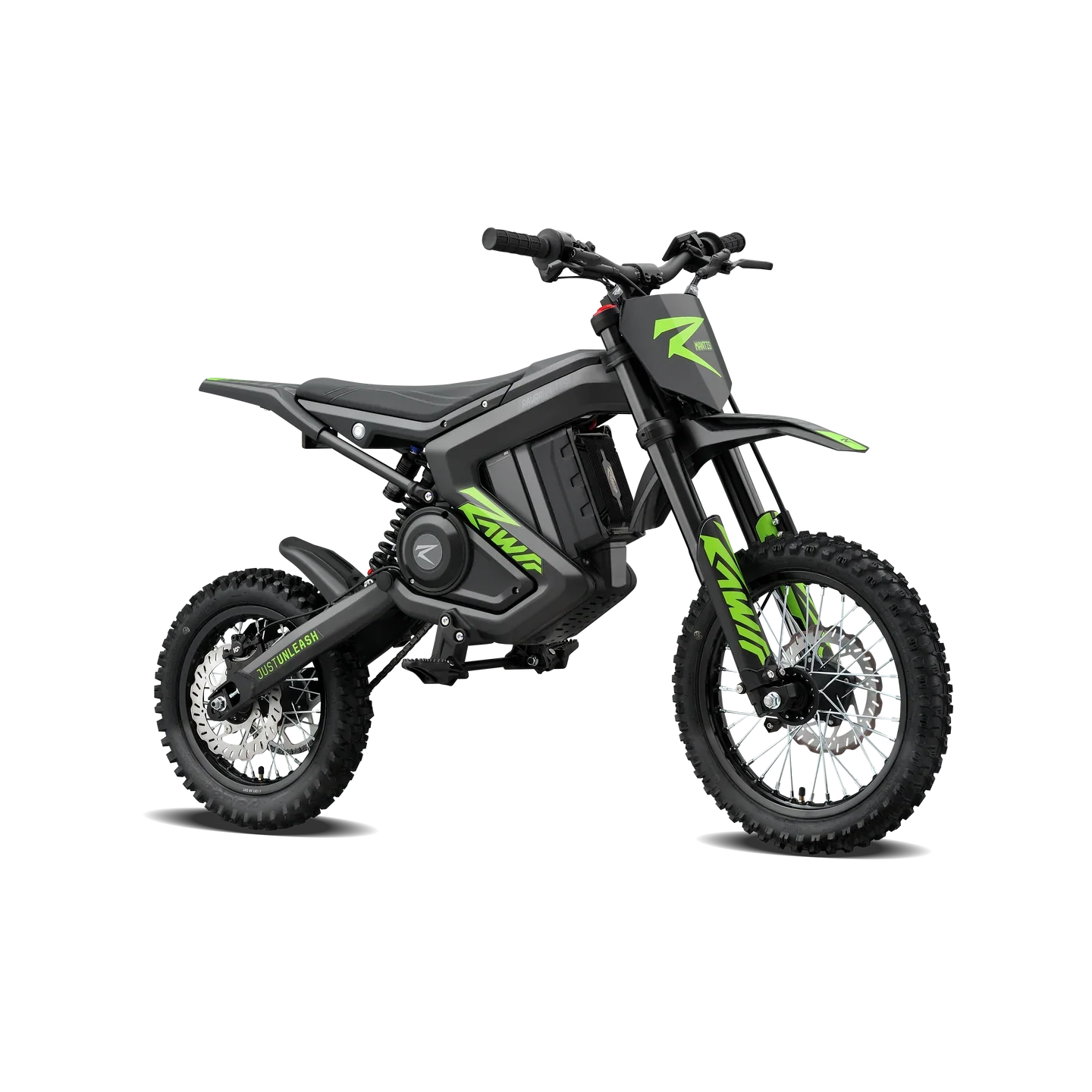

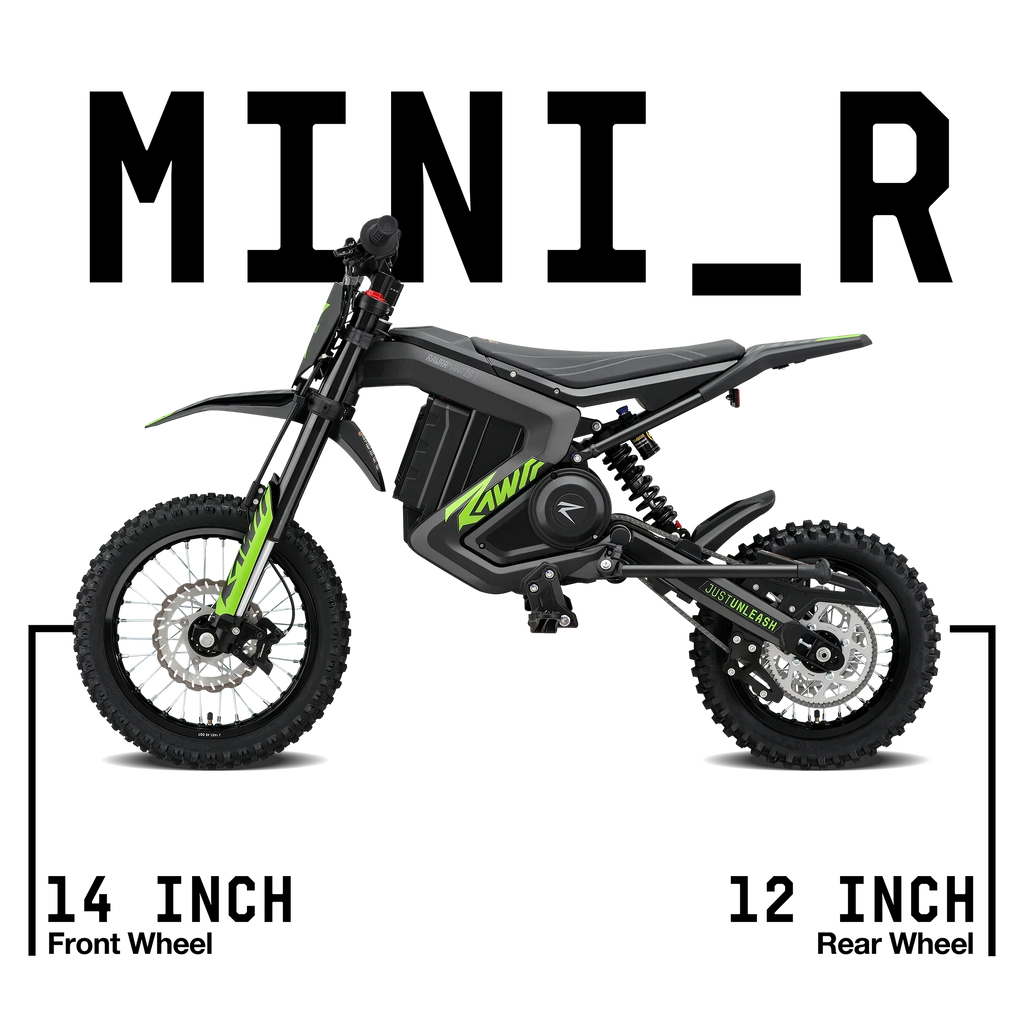

Mantis Mini R: Tire size 14" front | 12" rear ~ Ideal rider height: 3.5' - 4.25'

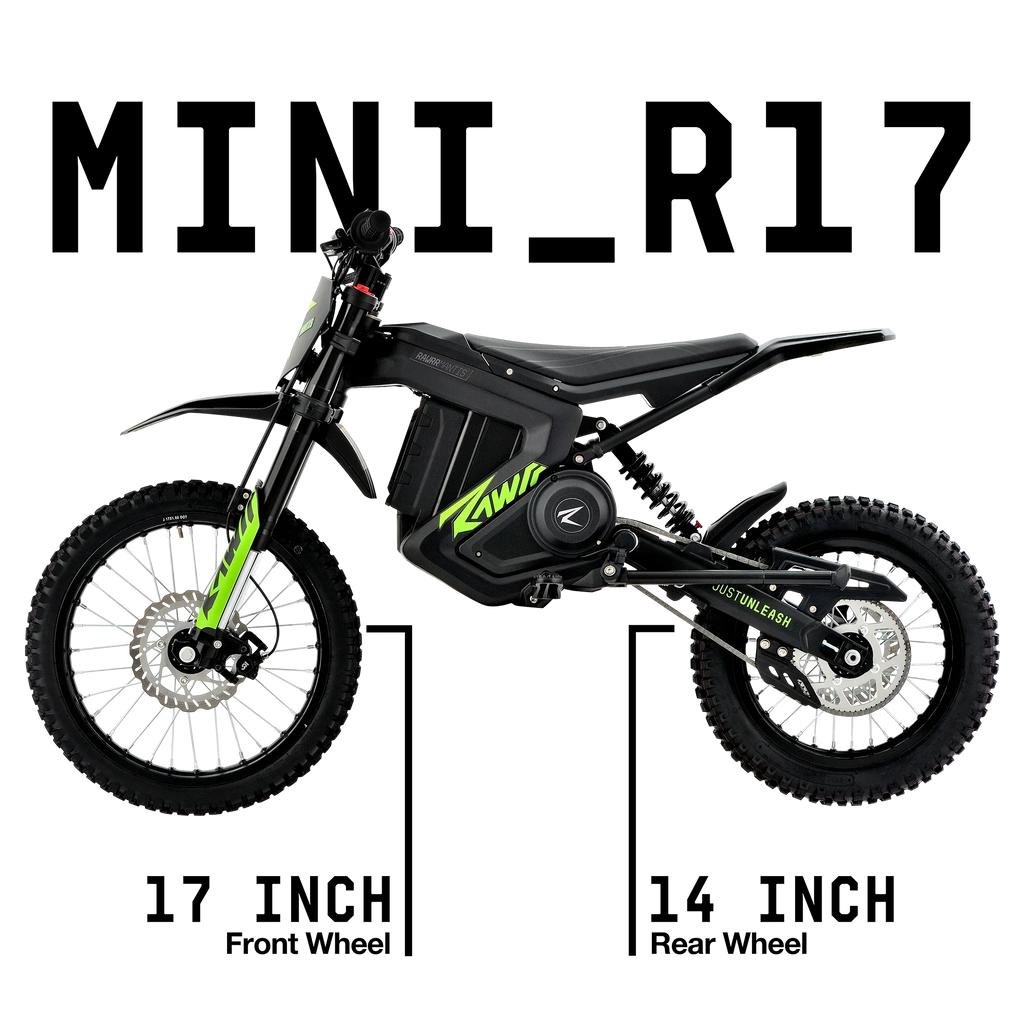

Mantis Mini R17: Tire size 17" front | 14" rear ~ Ideal rider height: 4' - 5.6'

Kill Switch

The Mini R and R17's Kill Switch allows new riders to mount and dismount safely.

Rollaway Protection

In the unfortunate event of a crash, the magnetic tether on the Mini R and R17 will come unclipped, causing the bike's power to be cut off. This safety feature ensures that the accident doesn’t escalate due to unwanted throttle input.

Brake Override

For new riders, pulling the brakes will also cut the power. This allows the bike to safely come to a complete stop without worry of unwanted throttle. Though, we know that as you advance, you won't want this behavior, so it can easily be disabled in the Rawrr App.

Auto Park

Riding with an extended kickstand can be dangerous, so the Mini R and R17 will prevent the bike from moving when the kickstand is down. The bike will automatically be put in Park Mode.

Water Sealed Battery

We've fully sealed the battery from water. The 72V Mantis Mini R/R17 battery has covers for the electrical connections, and the connectors on the bike have gaskets to keep water out and keep you safe whether the battery is in or out of the bike.

App Control

The perfect option for new or experienced riders to dial in their riding experience. Curate the ride to suit the rider's skill level with the ability to set speed limits, adjust torque curves, power levels and more.

MINI R

Performance

Top Speed: 46 MPH
0-30 MPH: 3.6 Seconds
Max Torque: 162.3 ftlb
Range (15mph 165lb rider): 37 Miles
Climbing Ability: 45 Degrees
Weight Capacity: 165 Lbs

Mechanical

Brake Type: 2-Piston Hydraulic Disc Brakes
Front Fork Travel: 110mm
Power Delivery: Direct Chain Drive
Front Brake Rotor Size: 203mm
Rear Brake Rotor Size: 203mm
Rear Suspension Travel: 60 mm
Frame Material: 6061 Aluminum Alloy
Motor Type: PMSM
Vehicle Weight With Battery: 115.7 lbs

Electrical

Max Output Power: 6000W
Battery Type: Lithium Ion
Battery Info: 72V 1440Wh
Nominal Power Output: 2000W
Drive Modes: Eco, Sport, Race
Display Type: LCD
Charging Time: 2 Hours (20%-90%)

Measurements

(A) Seat Height: 28.89 Inches

(B) Wheelbase: 41.14 Inches

(C) Handlebar Height: 33.46 Inches

(D) Length: 62.2 Inches

(E) Height: 37.8 Inches

(F) Ground Clearance: 9.45 Inches

MINI R17

Performance

Top Speed: 46 MPH
0-30 MPH: 3.6 Seconds
Max Torque: 162.3 ftlb
Range (15mph 165lb rider): 37 Miles
Climbing Ability: 45 Degrees
Weight Capacity: 165 Lbs

Mechanical

Brake Type: 2-Piston Hydraulic Disc Brakes
Front Fork Travel: 110mm
Power Delivery: Direct Chain Drive
Front Brake Rotor Size: 203mm
Rear Brake Rotor Size: 203mm
Rear Suspension Travel: 60 mm
Frame Material: 6061 Aluminum Alloy
Motor Type: PMSM
Vehicle Weight With Battery: 122.3 lbs

Electrical

Max Output Power: 6000W
Battery Type: Lithium Ion
Battery Info: 72V 1440Wh
Nominal Power Output: 2000W
Drive Modes: Eco, Sport, Race
Display Type: LCD
Charging Time: 2 Hours (20%-90%)

Measurements


(A) Seat Height: 30 Inches

(B) Wheelbase: 43.11 Inches

(C) Handlebar Height: 38.58 Inches

(D) Length: 64.2 Inches

(E) Height: 38.98 Inches

(F) Ground Clearance: 10.63 Inches
