Samlex EVO RC PLUS Remote For Evolution Series Inverters/Chargers

Samlex EVO-RC-PLUS

Remote Control for EVO^TM Series Inverter/Chargers

The EVO-RC is intelligent remote control designed specifically for use with Samlex Evolution^TM Series of Inverter/Chargers:

(i) F Series: EVO-1212F, EVO-1212F-HW, EVO-1224F, EVO-1224F-HW

(ii)120V Models: EVO-2212, EVO-3012, EVO-2224, EVO-4024

(iii)230V Models: EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E

(iv)120/240V Split Phase Model: EVO-4248SP

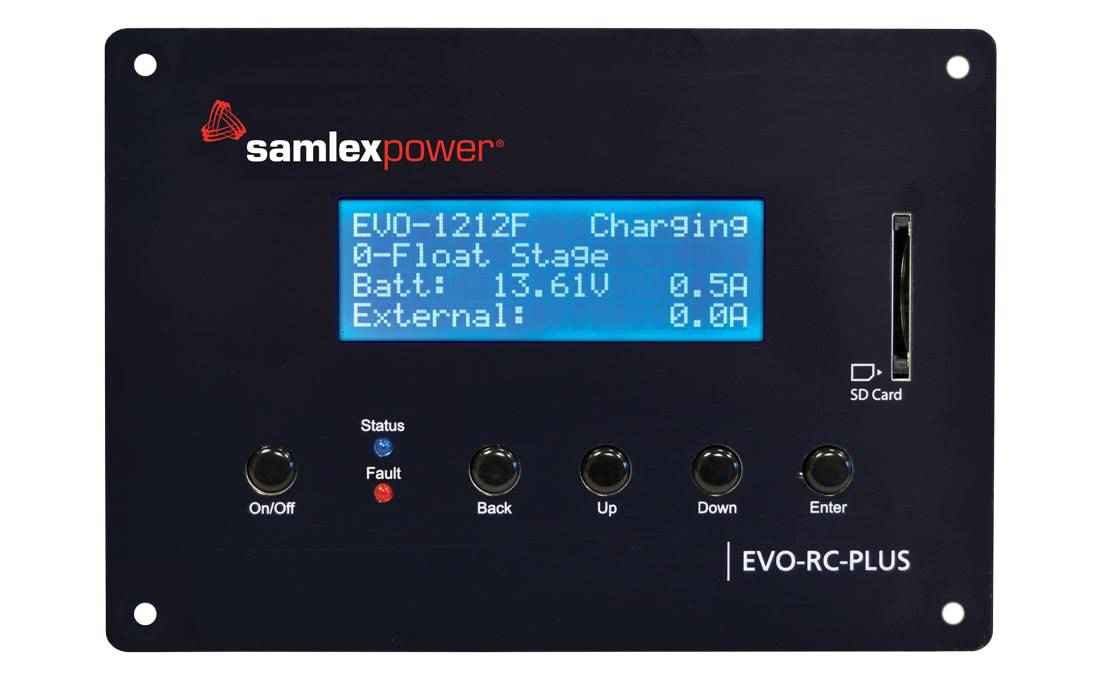

View real-time activity on the alpha numeric LDC display with 4 rows of 20 character while the unit is operating: Output voltage, Frequency, Amps, Watts, Volt Amps, Power Factor, Battery Voltage, Battery Current, Solar Input Current and more.

Features:

• Advanced features for programming various parameters and modes of operation
• 4 rows of 20 characters alpha numeric LCD display for messaging
• Robust metal enclosure
• SD card slot can manage a removable SD Card up to 16GB (SD Card not included)
• Includes 10M/33ft data cable

Applications:

• Boats, RVs, trucks, specialty vehicles
• Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
• Back-up and emergency power applications

Specifications:
